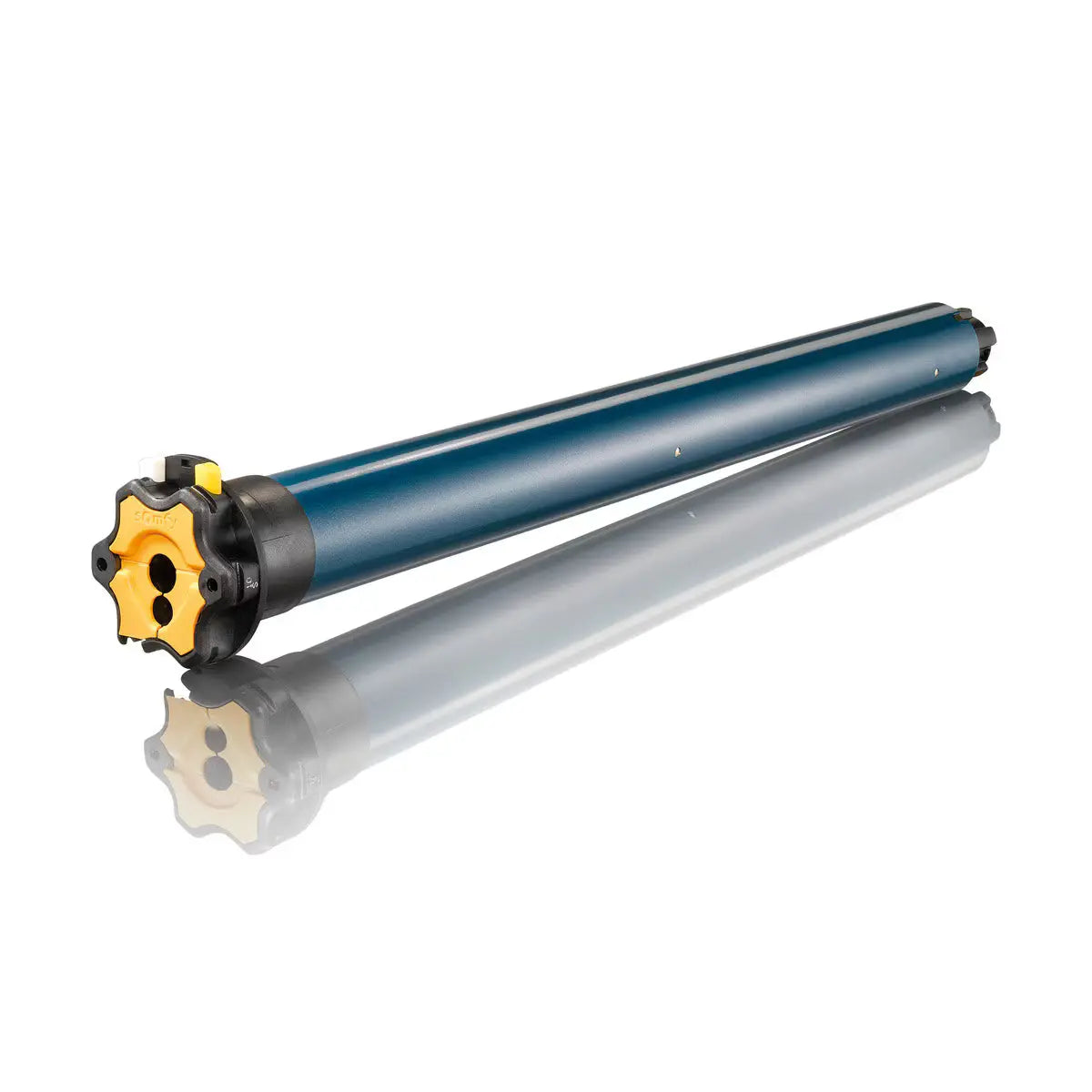

MAESTRIA 50 WT 15/17 VVF 3M BAR

MAESTRIA 50 WT 15/17 VVF 3M BAR

Pris: 3407 kr

Uppskattad lev. 3-5 dagar

Lägg i varukorgen

Produktbeskrivning

Ref. 1112341

MAESTRIA 50 WT 15/17 VVF 3M BAR

elektroniska gränslägen + kan parallellkopplas - 3 meter vit kabel / valsrör 70/78-85 mm

Beskrivning

The Maestria 50 WT is a wired motor which is developed for screens.
His electronic end limit switch unit allows you to wire several motors in parallel if there is no individual control needed.
A large range of motors are available: from 6 Nm until 35 Nm.
General functions
There are 3 different setting modes for the end limits possible
  • Full automatic: automatic up and down end limit
  • Full manual: a fixed up and down end limit
  • Semi-automatic: a fixed down end limit & an automatic up end limit
When the upper end limit is set in automatic mode (semi-automatic or full automatic mode) with a setting cable, the load bar will touch the screen box each 30 cycles. This during the first 180 cycles. This to compensate the lengthening of the fabric. After 180 cycles this lengthening compensation will only be executed each 90 cycles. This because the fabric won’t stretch a lot anymore.
For a perfect closure of the cassette of the screen at each up movement, with the load bar that touch the cassette box at each time, the setting of an automatic upper end limit must be set with an EMS2 tool during the production.
Specific functions depending on the application
  • Obstacle detection in the down direction (see the abacus for more information about the compatible products)
  • Back-release: can only be set if the upper end limit is set in automatic mode with an EMS2
  • To avoid the drift of the end limits due to induction tensions in long motor cables, the modification of the end limits can be blocked
  • The obstacle detection is standard active but it can be deactivated if needed
A PEP ECO passport (Product Environmental Profile) is available for this motor range

Dokumentation

Tekniska egenskaper

Tekniska egenskaper

  • Certifieringar

  • Godkännande

  • Teknisk information

  • SkyddsklassIP 44
  • IsolationsklassKlass I

  • Mått

  • Vikt exkl emballage2.12 kg
  • Längd exkl emballage605 mm
  • Bredd exkl emballage63 mm
  • Höjd exkl emballage63 mm
  • Minimum invändig diameter47 mm
  • Utvändig diameter45 mm
  • Diameter50 mm
  • Avstånd mellan nitar (L2)590 mm

  • Teknologi

  • Räckvidd öppet fält0.05 m

  • Elektrisk

  • Antal batterier0
  • Förbrukning under drift140 W
  • Förbrukning i standby-läge0.46 W
  • Lägsta spänning195.5 V
  • Maximal spänning255 V
  • Märkström0.65 A
  • Nominell spänning / frekvensAC - RGE 1 - 230V/50HZ

  • Mekanisk

  • Intern manuell frikoppling som tillvalNej
  • Extern manuell frikoppling som tillvalNej
  • Nominell hastighet17 rpm
  • Vridmoment15 Nm
  • Typ av gränslägesbrytareElektroniskt
  • Gränslägesbrytarens kapacitet250
  • Kraft skalaAC MOTOR MULTI FAS 37,5W TO 750W
  • Repeterbarhet< +/- 5
  • HuvudtypSTJÄRNA
  • Thermoskydd150 °C

  • Kabel

  • KabeltypVVF
  • Löstagbar kabelJa
  • Kabellängd3 m
  • KabelfärgVIT
  • Antal ledare i kabel4
  • Plug-in-kabelSKALAD
  • Ledararea0.75 mm²

  • annat

  • Lägsta arbetstemeratur-20 °C
  • Maximal arbetstemperatur70 °C
  • Lägsta fövaringstemperatur-20 °C
  • Maximal lagringstemperatur80 °C
  • Motorskyddstid4 min
  • FormRÖRFORMAD
  • Ljudnivå (enligt Somfys mätningar)50 dB

  • Färdig produkt

  • SlutprodukttypExternal Vertical Blinds
  • Slutproduktens bredd4 mm
